Float Switch

Float Switch
for wastewater | TF

The new VIYILANT TF Float switch is specially designed to automatically control PUMPS and/or MOTORS in industrial wastewater tanks with high turbulence and suspended solids. Its shape prevents solids from adhering to the body, while its weight and internal counterweight prevent false pump switching. Manufactured from non-toxic polypropylene with a double sealing chamber. Environmentally responsible, with no mercury or lead.

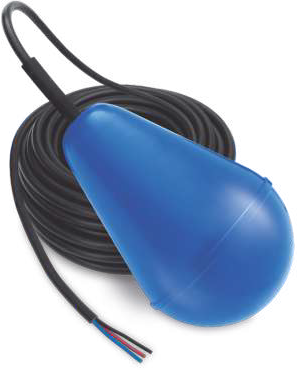

Float Switch for Wastewater TF

TF Models

TF

Blue TF Model

For wastewater

Microswitch
Honeywell 16(4)A
Cut Angle
+/- 20º
Temperature
0° to 60°
Cable
hydrocarbon-resistant PVC

TF NEO

Red TF NEO Model

For hard water and low
temperatures

Microswitch
Honeywell 16(4)A
Cut Angle
+/- 20º
Temperature
0° to 60°
Cable
Neoprene

TF EX

Black TF EX Model
Coming Soon

For explosive
environments

Microswitch
Honeywell 16(4)A
Cut Angle
+/- 20º
Temperature
-20 °C / 70 °C
Cable
hydrocarbon-resistant PVC

Installation / Installation

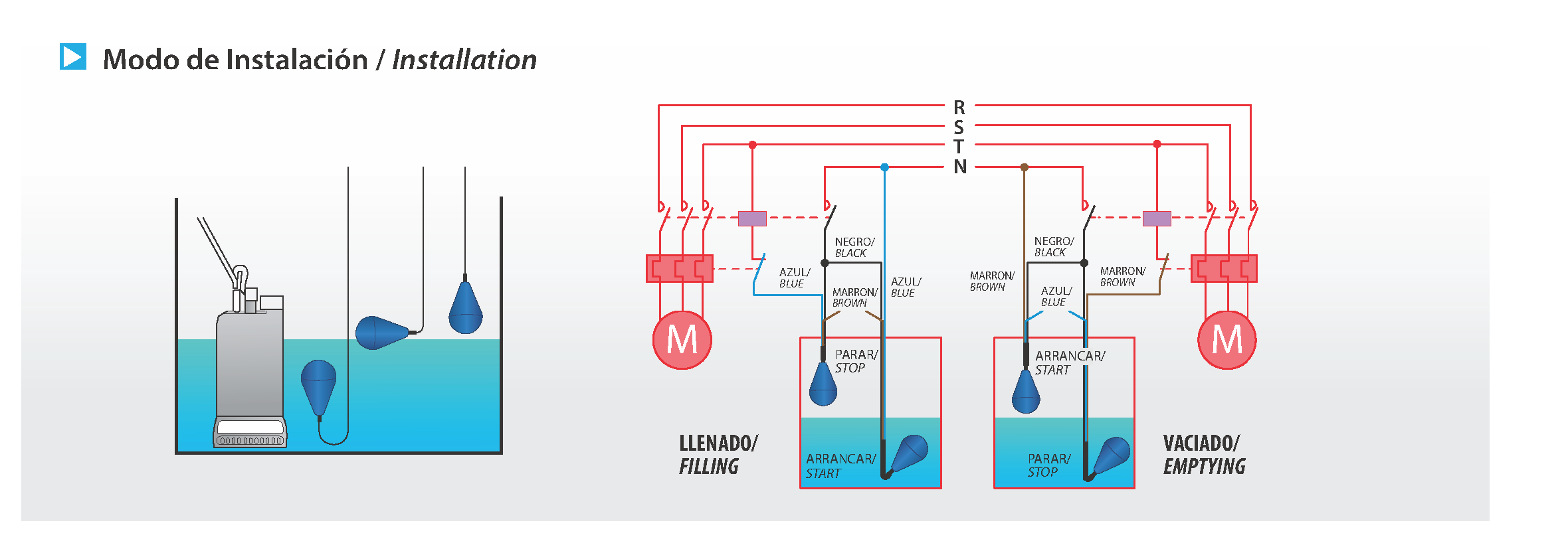

TF level control diagram for filling and drainingView Full-Size Diagram
Viyilant connector for improved watertight sealing

Recommendation

Use the Viyilant connector to improve the watertight seal.
