TI
Float switch for tanks and cisterns.
- Cable Lengths
- 1.5 / 2 / 3 / 5 / 10 m
- Use
- For filling and emptying
- Microswitch
- Honeywell 16 (4) A
- Switching angle
- +/- 45°
- Cable
- Extra-flexible thermoplastic rubber PVC
Float Switch
Float Switch | TI
VIYILANT level regulator is a Float Switch which controls the automatic start and stop of pumps, solenoid valves, motors, alarms when the preset level is reached. The change over contact can be used for filling or emptying function. Environmentally friendly, since it is mercury and lead-free.
TI Models

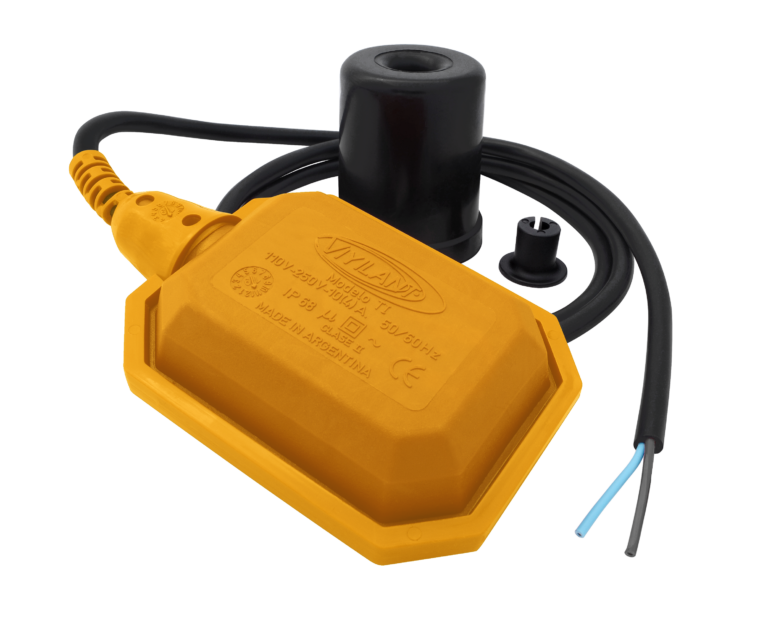

TI-S
Float switch for cisterns.
- Cable Lengths
- 1.5 m
- Use
- Cistern only
- Microswitch
- Honeywell 16 (4) A
- Switching angle
- +/- 45°
- Cable
- Extra-flexible thermoplastic rubber PVC

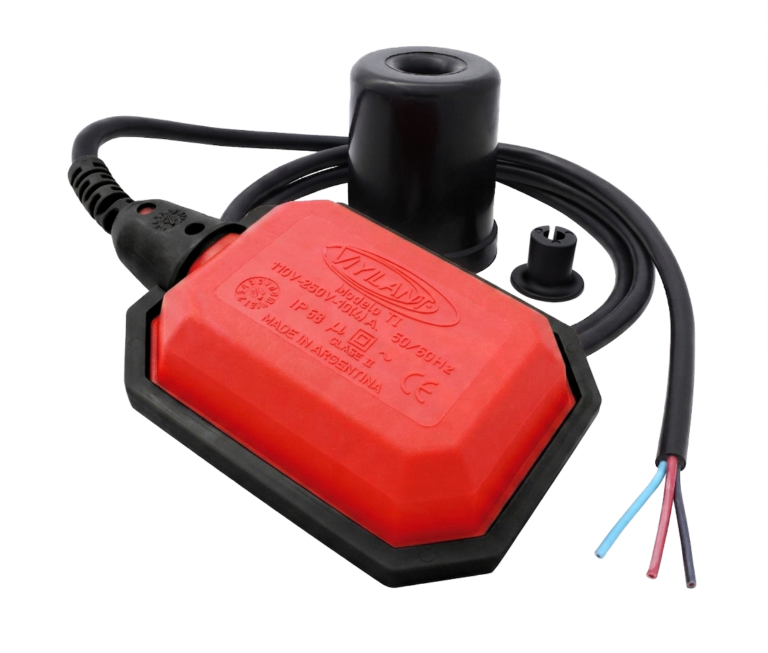

TI MAX
Float switch for higher-power pumps.
- Cable Lengths
- 1.5 / 3 / 5 m
- Use
- For higher power pumps
- Microswitch
- Honeywell 26 (10) A
- Switching angle
- +/- 45°
- Cable
- Extra-flexible thermoplastic rubber PVC

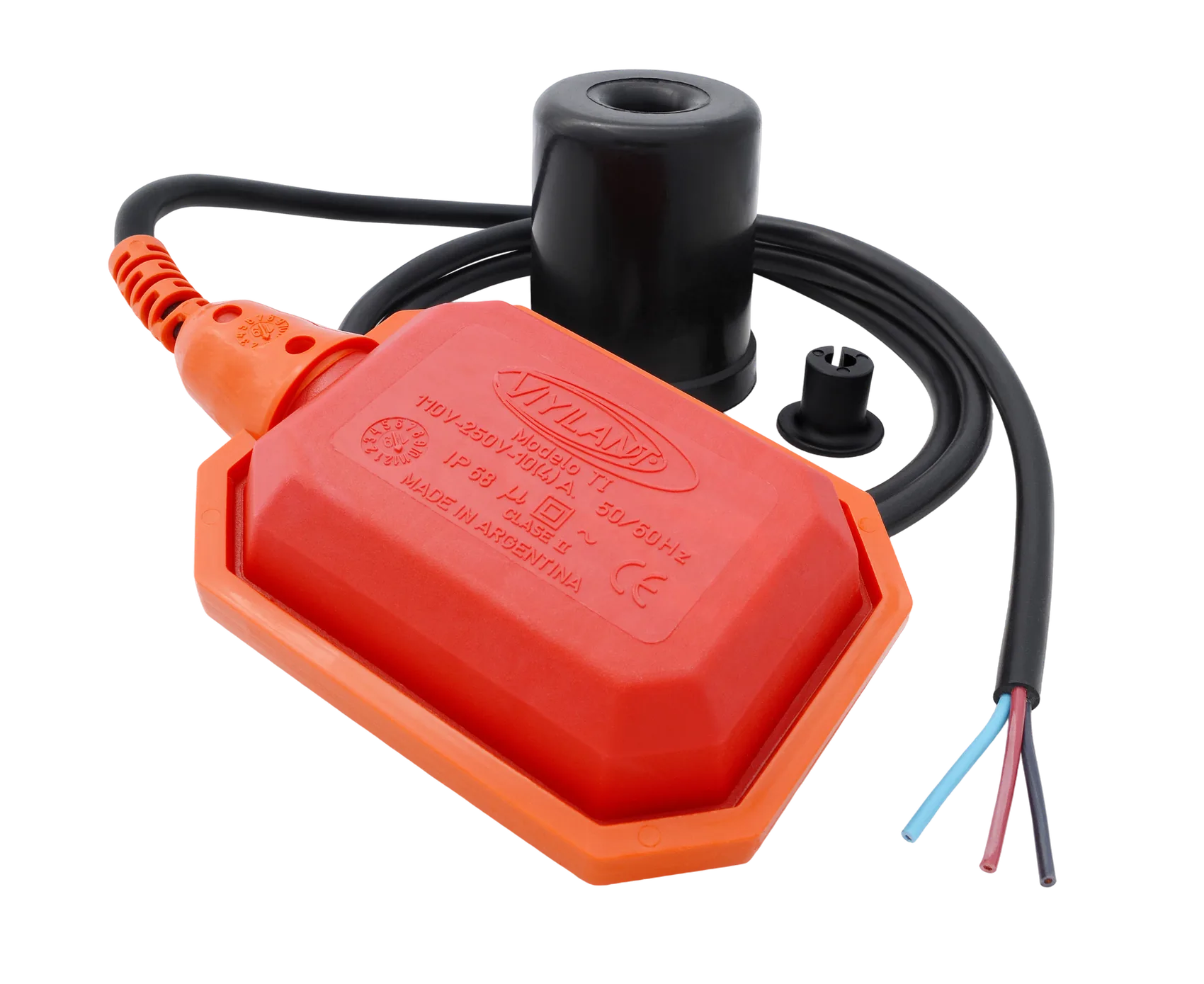

TI PATAGÓNICO
Float switch for flat tanks.
- Cable Lengths
- 1.5 / 3 / 5 m
- Use
- For small spaces or flat tank
- Microswitch
- Honeywell 16 (4) A
- Switching angle
- +/- 20°
- Cable
- Extra-flexible thermoplastic rubber PVC

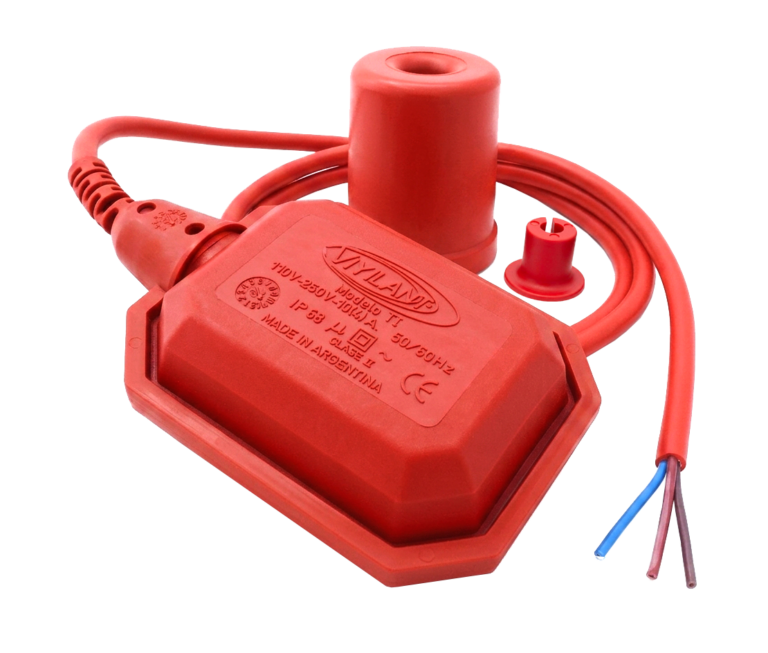

TI NEO
Float switch for hard water and low temperatures.
- Cable Lengths
- 2 / 3 / 5 m
- Use
- For hard water and low tempertures
- Microswitch
- Honeywell 16 (4) A
- Switching angle
- +/- 45°
- Cable
- H07RN Neoprene

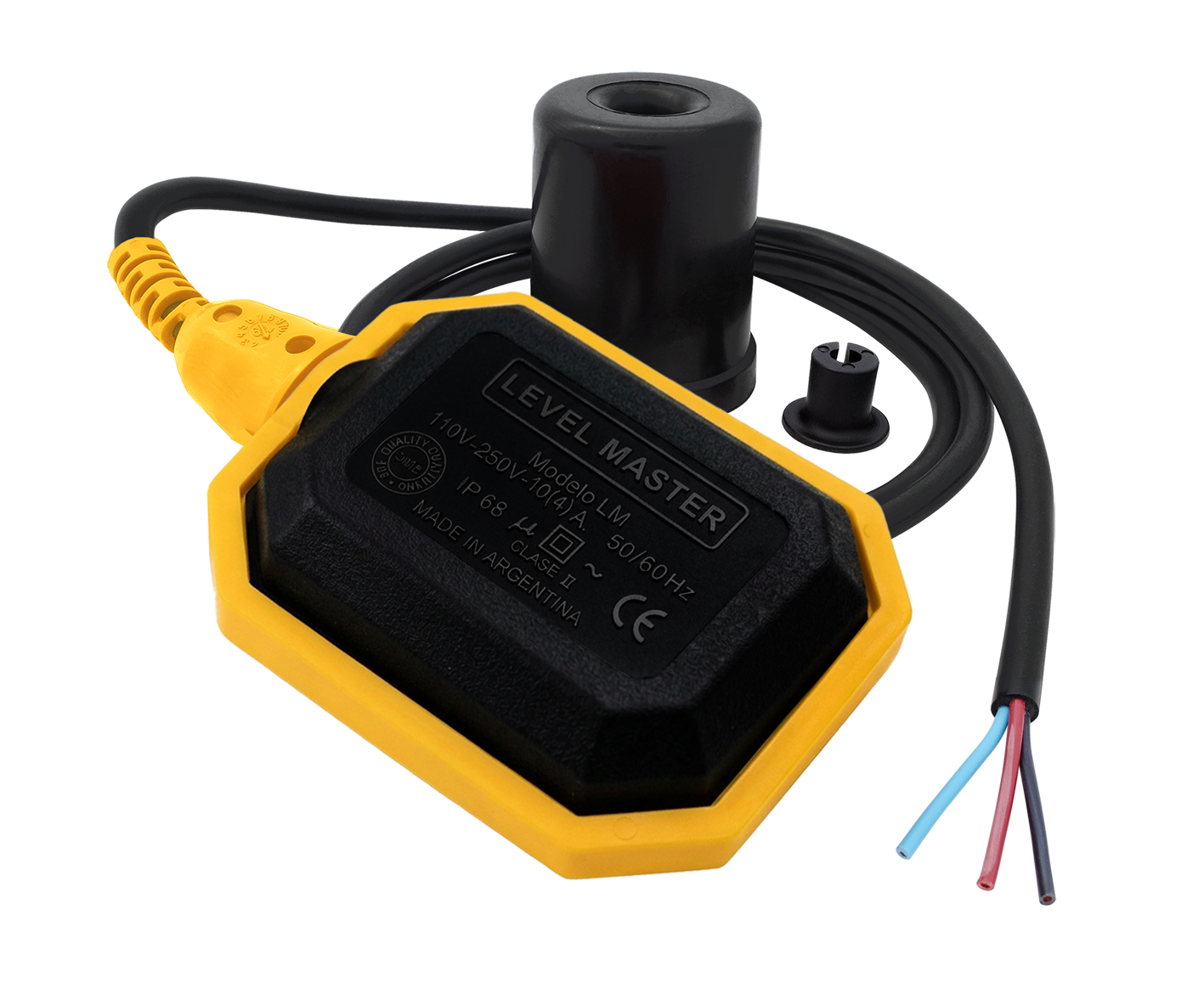

Level Master
Float switch for tanks and cisterns.
- Cable Lengths
- 1.5 m
- Use
- For tanks and cisterns
- Cut Angle
- +/-45°
- Cable
- Extra-flexible thermoplastic rubber PVC

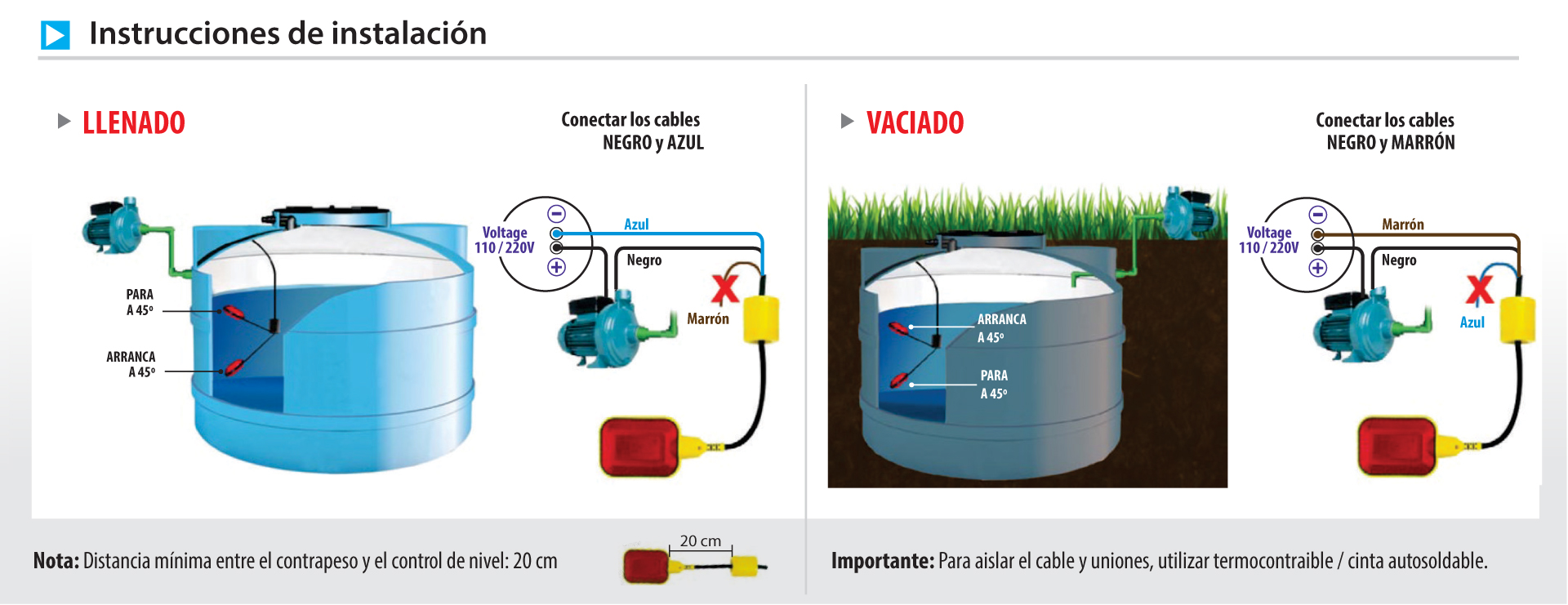

Installation: maintain a minimum distance of 20 cm between the counterweight and the level control. Use heat-shrink tubing or self-fusing tape to insulate cables and connections.
Recommendation

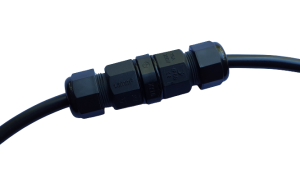

Use the Viyilant connector to improve the watertight seal.
